Radio and optical SETI look for evidence of extraterrestrial civilizations even though we have no evidence that such exist. The search is eminently worthwhile and opens up the ancillary question: How would a transmitting civilization produce a signal strong enough for us to detect it at interstellar distances? Beacons of various kinds have been considered and search strategies honed to find them. But we’ve also begun to consider new approaches to SETI, such as detecting technosignatures in our astronomical data (Dyson spheres, etc.). To this mix we can now add a consideration of gravitational lensing, and the magnifications possible when electromagnetic radiation is focused by a star’s mass. For a star like our Sun, this focal effect becomes useful at distances beginning around 550 AU.
Theoretical work and actual mission design for using this phenomenon began in the 1990s and continues, although most work has centered on observing exoplanets. Here the possibilities are remarkable, including seeing oceans, continents, weather patterns, even surface vegetation on a world circling another star. But it’s interesting to consider how another civilization might see gravitational lensing as a way of signaling to us. Indeed, doing so could conceivably open up a communications channel if the alien civilization is close enough, for if we detect lensing being used in this way, we would be wise to consider using our own lens to reply.
Or maybe not, considering what happens in The Three Body Problem. But let’s leave METI for another day. A new paper from Slava Turyshev (Jet Propulsion Laboratory) makes the case that we should be considering not just optical SETI, but a gravitationally lensed SETI signal. The chances of finding one might seem remote, but then, we don’t know what the chances of any SETI detection are, and we proceed in hopes of learning more. Turyshev argues that with the level of technology available to us today, a lensed signal could be detected with the right strategy.
Image: Slava Turyshev (Jet Propulsion Laboratory). Credit: Asteroid Foundation.
“Search for Gravitationally Lensed Interstellar Transmissions,” now available on the arXiv site, posits a configuration involving a transmitter, receiver and gravitational lens in alignment, something we cannot currently manage. But recall that the effort to design a solar gravity lens (SGL) mission has been in progress for some years now at JPL. As we push into the physics involved, we learn not only about possible future space missions but also better strategies for using gravitational lensing in SETI itself. We are now in the realm of advanced photonics and optical engineering, where we define and put to work the theoretical tools to describe how light propagates in a gravity field.
And while we lack the technologies to transmit using these methods ourselves (at least for now), we do have the ability to detect extraterrestrial signals using gravitational lensing. In an email yesterday, Dr. Turyshev offered an overview of what his analysis showed:
Many factors influence the effectiveness of interstellar power transmission. Our analysis, based on realistic assumptions about the transmitter, shows that substantial laser power can be effectively transmitted over vast distances. Gravitational lensing plays a crucial role in this process, amplifying and broadening these signals, thereby increasing their brightness and making them more distinguishable from background noise. We have also demonstrated that modern space- and ground-based telescopes are well-equipped to detect lensed laser signals from nearby stars. Although individual telescopes cannot yet resolve the Einstein rings formed around many of these stars, a coordinated network can effectively monitor the evolving morphology of these rings as it traces the beam’s path through the solar system. This network, equipped with advanced photometric and spectroscopic capabilities, would enable not only the detection but also continuous monitoring and detailed analysis of these signals.
We’re imagining, then, an extraterrestrial civilization placing a transmitter in the region of its own star’s gravitational lens, on the side of its star opposite to the direction of our Solar System. The physics involved – and the mathematics here is quite complex, as you can imagine – determine what happens when light from an optical transmitter is sent to the star so that when it encounters the warped spacetime induced by the star’s mass, the diffracted rays converge and create what scientists call a ‘caustic,’ a pattern created by the bending of the light rays and their resulting focused patterns.
In the case of a targeted signal, the lensing effect emerges in a so-called ‘Einstein ring’ around the distant star as seen from Earth. The signal is brightened by its passage through warped spacetime, and if targeted with exquisite precision, could be detected and untangled by Earth’s technologies. Turyshev asks in this paper how the generated signal appears over interstellar distances.
The answer should help us understand how to search for transmissions that use gravitational lensing, developing the best strategies for detection. We’ve pondered possible interstellar networks of communication in these pages, using the lensing properties of participating stellar systems. Such signals would be far more powerful than the faint and transient signals detectable through conventional optical SETI.
Laser transmissions are inherently directional, unlike radio waves, the beams being narrow and tightly focused. An interstellar laser signal would have to be aimed precisely towards us, an alignment that in and of itself does not resolve all the issues involved. We can take into account the brightness of the transmitting location, working out the parameters for each nearby star and factoring in optical background noise, but we would have no knowledge of the power, aperture and pointing characteristics of a transmitted signal in advance. But if we’re searching for a signal boosted by gravitational lensing, we have a much brighter beam that will have been enhanced for best reception.

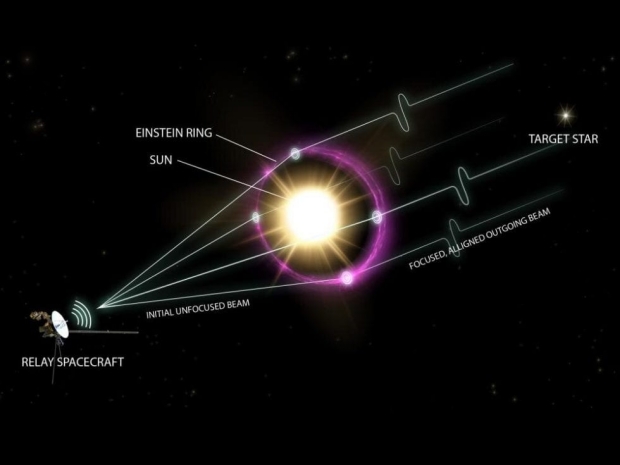

Image: Communications across interstellar distances could take advantage of a star’s ability to focus and magnify communication signals through gravitational lensing. A signal from—or passing through—a relay probe would bend due to gravity as it passes by the star. The warped space around the object acts somewhat like a lens of a telescope, focusing and magnifying the light. Pictured here is a message from our Sun to another stellar system. Possible signals from other stars using these methods could become SETI targets. Image credit: Dani Zemba / Penn State. CC BY-NC-ND 4.0 DEED.
Mathematics at this level is something I admire and find beautiful much in the same way I appreciate Bach, or a stunning Charlie Parker solo. I have nowhere near the skill to untangle it, but take it in almost as a form of art. So I send those more mathematically literate than I am to the paper, while relying on Turyshev’s explanation of the import of these calculations, which seek to determine the shape and dimensions of the lensed caustic, using the results to demonstrate the beam propagation affected by the lens geometry, and the changes to the density of the EM field received.
It’s interesting to speculate on the requirements of any effort to reach another star with a lensed signal. Not only does the civilization in question have to be able to operate within the focal region of its stellar lens, but it has to provide propulsion for its transmitter, given the relative motion between the lens and the target star (our own). In other words, it would need advanced propulsion just to point toward a target, and obviously navigational strategies of the highest order within the transmitter itself. As you can imagine, the same issues emerge within the context of exoplanet imaging. From the paper:
…we find that in optical communications utilizing gravitational lenses, precise aiming of the signal transmissions is also crucial. There could be multiple strategies for initiating transmission. For instance, in one scenario, the transmission could be so precisely directed that Earth passes through the targeted spot. Consequently, it’s reasonable to assume that the transmitter would have the capability to track Earth’s movement. Given this precision, one might question whether a deliberately wider beam, capable of encompassing the entire Earth, would be employed instead. This is just [a] few of many scenarios that merit thorough exploration.
Detecting a lensed signal would demand a telescope network optimized to search for transients involving nearby stars. Such a network would be capable of a broad spectrum of measurements which could be analyzed to monitor the event and study its properties as it develops. Current and near-future instruments from the James Webb Space Telescope and Nancy Grace Roman Space Telescope to the Vera C. Rubin Observatory’s LSST, the Thirty Meter Telescope and the Extremely Large Telescope could be complemented by a constellation of small instruments.
Because the lens parameters are known for each target star, a search can be constructed using a combination of possible transmitter parameters. A search space emerges that relies on current technology for each specific laser wavelength. According to Turyshev’s calculations, a signal targeting a specific spot 1 AU from the Sun would be detectable with such a network with the current generation of optical instruments. Again from the paper:
Once the signal is detected, the spatial distribution of receivers is invaluable, as each will capture a distinct dataset by traveling through the signal along a different path… Correlating the photometric and spectral data from each path enables the reconstruction of the beam’s full profile as it [is] projected onto the solar system. Integrating this information with spectral data from multiple channels reveals the transmitter’s specific features encoded in the beam, such as its power, shape, design, and propulsion capabilities. Additionally, if the optical signal contains encoded information, transmitted via a set of particular patterns, this information will become accessible as well.
While microlensing events created by a signal transmitted through another star’s gravitational lens would be inherently transient, they would also be strikingly bright and should, according to these calculations, be detectable with the current generation of instruments making photometric and spectroscopic observations. Using what Turyshev calls “a spatially dispersed network of collaborative astronomical facilities,” it may be possible not only to detect such a signal but to learn if message data are within. The structure of the point spread function (PSF) of the transmitting lens could be determined through coordinated ground- and space-based telescope observations.
We are within decades of being able to travel to the focal region of the Sun’s gravitational lens to conduct high-resolution imaging of exoplanets around nearby stars, assuming we commit the needed resources to the effort. Turyshev advocates a SETI survey along the lines described to find out whether gravitationally lensed signals exist around these stars, pointing out that such a discovery would open up the possibility of studying an exoplanet’s surface as well as initiating a dialogue. “[W]e have demonstrated the feasibility of establishing interstellar power transmission links via gravitational lensing, while also confirming our technological readiness to receive such signals. It’s time to develop and launch a search campaign.“
The paper is Turyshev, “Search for gravitationally lensed interstellar transmissions,” now available as a preprint. You might also be interested in another recent take on detecting technosignatures using gravitational lensing. It’s Tusay et al., “A Search for Radio Technosignatures at the Solar Gravitational Lens Targeting Alpha Centauri,” Astronomical Journal Vol. 164, No. 3 (31 August 2022), 116 (full text), which led to a Penn State press release from which the image I used above was taken.
