If you follow the fortunes of the stars closest to us, you know that Barnard’s Star has always excited interest, both because of its proximity to our system (about six light years) but also because of the early work on the star performed by Peter Van de Kamp at Sproul Observatory (Swarthmore College). That work, which ran until the early 1970s, initially appeared to show a Jupiter-class planet at the star but the results were later explained as instrumentation errors in Van de Kamp’s equipment.
It was a cautionary tale, but credit the astronomer for working tirelessly using astrometry to attempt to validate a conclusion we now take for granted: There are planets around other stars. In 2018 we seemed to have a solid detection of a much different planet candidate via Guillem Anglada-Escudé (Queen Mary University, London) and Ignasi Ribas (Institute of Space Studies of Catalonia and the Institute of Space Sciences, CSIC in Spain), indicating a super-Earth of 3.3 Earth masses in an orbit near Barnard Star’s snowline (see A Super-Earth Orbiting Barnard’s Star for that coverage), but no confirmation followed.
Indeed, we may have been looking at stellar activity in this second detection rather than a planet, according to a new paper announcing the discovery of a planet below Earth mass at the star. On the 2018 work, the paper notes that “ESPRESSO data does not support the existence of the 233 d candidate planet.” See Paul Robertson’s A very stealthy alias: the impostor planet of Barnard’s star for a detailed look at the detection and the stellar activity explanation.
But this new announcement of a Barnard’s Star planet looks to be solid. Lead author Jonay González Hernández (Instituto de Astrofísica de Canarias) and team, working at the European Southern Observatory’s Very Large Telescope (VLT) made the find with the help of ESPRESSO (Echelle SPectrograph for Rocky Exoplanet and Stable Spectroscopic Observations), the successor to the highly successful HARPS spectrograph, capable of teasing out the wobble induced in the star by a planet.
We now have a low-mass planet, as confirmed by HARPS at the La Silla Observatory, HARPS-N (on La Palma, Canary Islands) and CARMENES at the Calar Alto Observatory, Spain. Twenty times closer to Barnard’s Star than Mercury is to the Sun, the planet orbits in 3.15 Earth days and has a surface temperature around 400 K. The planet is about half the mass of Venus, or three times the mass of Mars. Says Hernández:
“Barnard b is one of the lowest-mass exoplanets known and one of the few known with a mass less than that of Earth. But the planet is too close to the host star, closer than the habitable zone. Even if the star is about 2500 degrees cooler than our Sun, it is too hot there to maintain liquid water on the surface.”
T
Image: This stunning panorama shows the Milky Way galaxy arching above the platform of ESO’s Very Large Telescope (VLT) on Cerro Paranal, Chile, where the work on the new Barnard’s Star discovery was performed. At 2635 metres above sea level, Paranal Observatory is one of the very best astronomical observing sites in the world and is the flagship facility for European ground-based astronomy. The extent of our galaxy’s cloudy and dusty structure can be seen in remarkable detail as a dim glowing band across the observation deck. Credit: ESO.
Indeed, Barnard’s Star b (which I see is being referred to simply as Barnard b) may not be the only planet here. The paper makes note of three other candidates currently under investigation using ESPRESSO. Here we have to be careful. The radial velocity data show several signals at periods less than 10 days: The paper reports periods of 3.15 d, 4.12 d, 2.34 d and 6.74 d, sorted by strength of the signals. The researchers cannot confirm these signals at this point, but are able to model a system that fits the data. Let me go a bit into the weeds here. From the paper:
[The modeled system] would correspond to a system of four sub-Earth mass planets with mp sin i = 0.32, 0.31, 0.22 and 0.17 M⊕. All candidate planetary orbits would be located inner to the habitable zone of the star, with orbital semi-major axes between 0.019 AU and 0.038 AU. Thus all the candidate planets would be irradiated more than the Earth with incident fluxes between 2.4 S ⊕ to 10.1 S ⊕, and their equilibrium temperatures, assuming albedo of 0.3, would be in between 440 K of the inner planet to the 310 K of the outer planet.
Let’s untangle this (this is how I learn things). The four potential planets that emerge from this model are described by mp sin i, which helps us determine a minimum mass (mp) for a planet. What is at stake here is the inclination angle (i) of the planet’s orbit as viewed from Earth, but because we cannot see such planets, we can go from an edge-on orbit (sin close to 1) to a face-on orbit, where sin i is small and the mass of the planet is much higher. So the numbers above refer to minimum masses that could be higher depending on how the system is tilted to our point of view. If these other worlds exist, they’re all too close to the star to fit the liquid water habitable zone. Indeed, the S value in the quote refers to solar flux, which in the case of the hypothetical planets would be 2.4 to 10.1 times the stellar radiation that Earth receives from the Sun.
In any case, the authors are careful to add that confirming an actual four-planet system at Barnard’s Star would take many more observations using ESPRESSO:
These observations would need to be done with sufficient cadence to sample these planet periods as well as with enough baseline to be able to properly model the activity of the star, in particular, those activity signals associated with the stellar rotation.
So the hunt continues, encouraged by the one newly confirmed planet, as we scour this and other nearby red dwarfs for evidence of small rocky worlds. We can look ahead to ANDES, the ArmazoNes high Dispersion Echelle Spectrograph, which will be used in conjunction with the European Southern Observatory’s Extremely Large Telescope, a 39-meter instrument that will be the largest visible and infrared light telescope in the world. Located at Cerro Armazones in Chile’s Atacama Desert, the telescope should see first light as soon as 2028.
The paper is Hernández et al., “A sub-Earth-mass planet orbiting Barnard’s star,” Astronomy & Astrophysics Volume 690 (October 2024). Full text.
Finally! Some good news about a more robust detection of a planet orbiting the nearby Barnard’s Star. For a detailed history of past efforts to find planets orbiting Barnard’s Star up to the now spurious detection in 2018, see this article: https://www.drewexmachina.com/2018/11/16/our-new-neighbor-orbiting-barnards-star-details-historical-background/
Great article and thank you for the fast publishing, I only saw it on Facebook 2 hours ago! It would be nice if someone could make an image of these four planets with the habitable zone. Since these planets may be small has anybody looked for their transits? How well do they fit for resonance orbits and what would be next in that order? Should be very interesting to see how this developers.

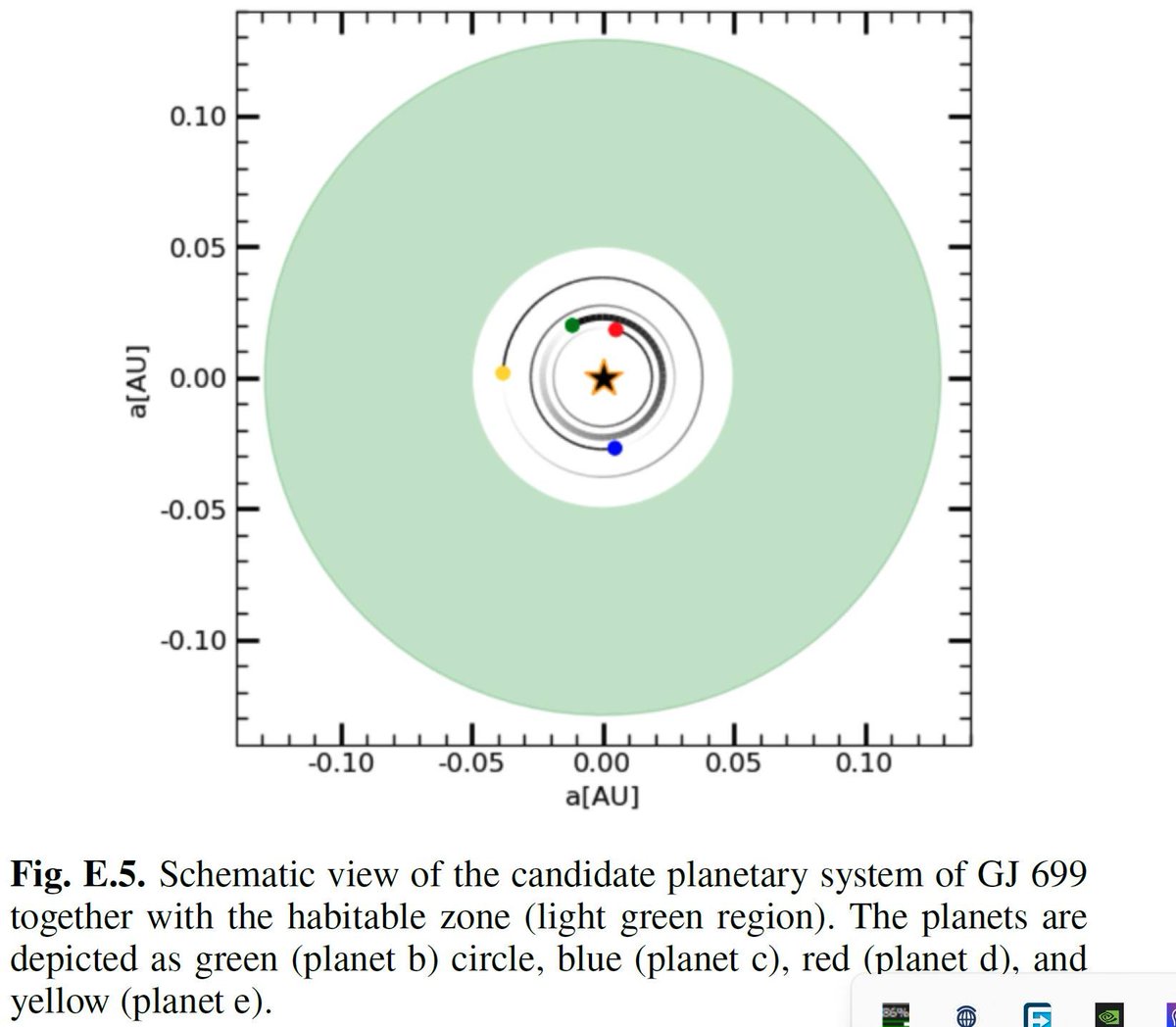

Found this image at the end of the paper “A sub-Earth-mass planet orbiting Barnard’s star,” Astronomy & Astrophysics Volume 690 (October 2024) that has the all four plant’s orbits and shows the habitable zone.
